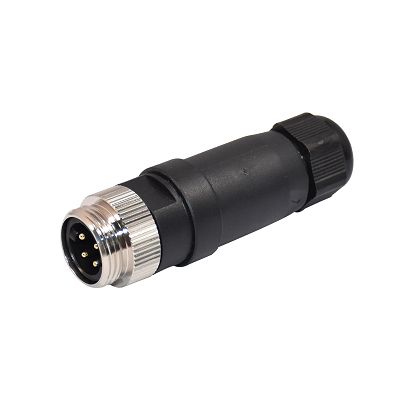

IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly

Name: IP68 Female Male Waterproof Wire Connector 2 17 Pin Assembly
Brand: Rigoal Connector
Price: 1 USD

China IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly wholesale

Brand Name : Rigoal Connector

Model Number : 7/8 Connector

Certification : CE ， Rohs , IP68

Place of Origin : China ShenZhen

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 30work day

Packaging Details : 46x30x30

Application : Power,LED,Electrical equipment

Product name : Electrical Connector

Overmold : Transparent TPU

Insert : TPU+GF

Contact resistance : ≤5mΩ

Polarity : 3pins, 4pins,5pins,6pins,8pins

Contacts : Brass with gold plated

Insulation resistance : ≥100MΩ

Contact Now

7/8 panel mount waterproof connector

Specification

Item	value
Place of Origin	Shen zhen,China
Brand Name	RIGOAL
Model Number	7/8 assembly waterproof connector
Application	Automotive
Gender	female
Pins	4p, 5P, 3P
Application:	Power, Automotive
Gender:	Female
Coupling nut/screw	Brass with nickel plated
Ambient temperature:	-25℃~+80℃
Termination Method:	Screw
Current Rating:	9A
Body Orientation	Straight
IP rating	IP 67/IP68
Application	Telecommunication
Certificate	CE ROHS ISO9001

IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly

Available Description:

Stainless steel screw is available
IP67/IP68, RoHS, certificate
Generally Description:
Connector Series: 7/8
Coding: A
Pins: 3 / 4 / 5pins
Gender:Male&Female
Connector Design: Panel mount
Connector Locking System: Fix screw
Waterproof Rating: IP65/IP67
Ambient Temperature: -25°C~+85°C

Material:

Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC
Electrical data:
Rated Current: 9A
Rated Voltage: 250V
Contact Resistance: ≤10mΩ
Insulation Resistance: ≥100MΩ

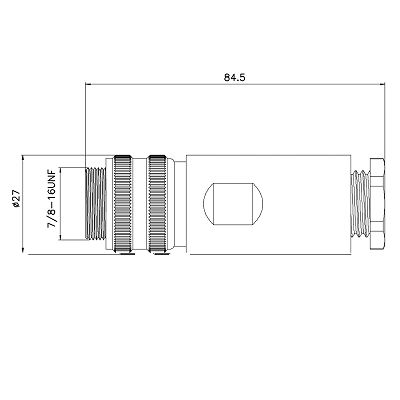

Product paramete

Certifications

IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly

Package&Shipping:

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:40*30*30cm

2. OEM/ODM package is available

3. According to customer choice.

IP68 Female Male Waterproof Wire Connector 2 - 17 Pin Assembly
