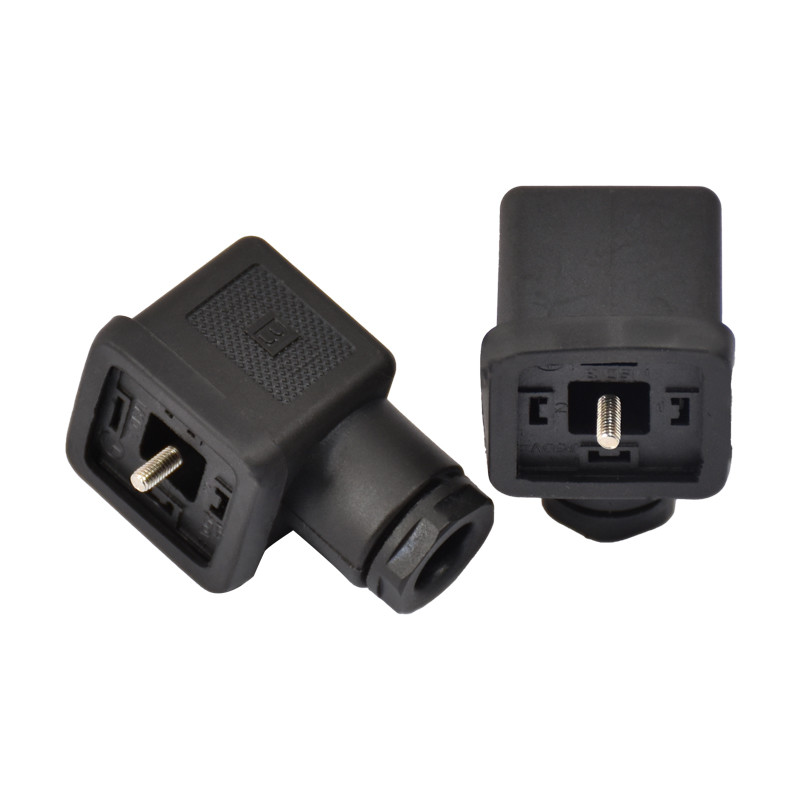

PA GF Solenoid Valve Waterproof Connector A B C Code Electric Plug DIN43650B TPU For LED

Name: PA GF Solenoid Valve Waterproof Connector A B C Code Electric Plug DIN43650B TPU For LED
Brand: Rigoal connector(RG)
Price: 1 USD

China PA GF Solenoid Valve Waterproof Connector A B C Code Electric Plug DIN43650B TPU For LED wholesale

Brand Name : Rigoal connector(RG)

Model Number : DIN43650B

Certification : CE ， Rohs , IP68

Place of Origin : Guangdong, China

MOQ : 1000

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 30work day

Packaging Details : 46x30x30

Housing material : PA+GF

Ambient temperature : -40°C~+125°C

Type : DIN, DIN43650 A code

Gender : Female

Rated current : 10A

Contact resistance : ≤5MΩ

Form : 2+PE

Contact Now

Product Application

DIN Connector for Solenoid Coils.
DIN43650A
DIN43650B
DIN43650C
1set Junction Box with Screw & Washer

 DIN 43650 FORM A - FORM B - FORM C - SOLENOID VALVE CONNECTORS
Din43650 form A male 2 3 poles+ground panel mount connector,solder termination and incudes center retaining nut,incudes M3x10mm screw and M3 x 5mm screw
DIN 43650 connectors are a series of connectors which are used with solenoid valves. The Din 43650 connectors are normally used in hydraulics and pneumatics. Other applications are pressure sensors and switches, optical, limit and proximity switches.
Solenoid valve connectors are manufactured in the standard varieties as well as they can be cutomized to customer specifications.
 Valve Electrical Data:
 Rated current: 8A / 10A
 Rated voltag: 24V / 250V
 Contact resistance: ≤4mΩ
 Insulation resistance: ≥100MΩ
 Valve Connector Specification:
 A type Pin dimensions: 18mm (2+PE,3+PE)
 B type Pin dimensions:9mm or 11mm(2+PE)
 C type Pin dimensions:8mm or 9.4mm(2+PE,3+PE)
 Waterproof: O-ring FKM
 Connector over-mold: TPU
 Material of female connetor contact: PS with silver plating
 Connector screw: Shell with Zn plating
 Connectors come in variours"Forms"depending on the configuration of pins and dimensions,the forms are available liste below
 * Din Form A
 * Din Form B
 * Din Form C
