A Code 4 Pin Male 0.5A M12 Panel Mount Waterproof Connector PG9 Fastening Thread

Name: A Code 4 Pin Male 05A M12 Panel Mount Waterproof Connector PG9 Fastening Thread
Brand: RIGOAL
Price: 1 USD

China A Code 4 Pin Male 0.5A M12 Panel Mount Waterproof Connector PG9 Fastening Thread wholesale

Brand Name : RIGOAL

Model Number : m12 panel mount connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Coding : A / B / C / D / K / L / X / S / T Code

Temperature Range : -25°C ~ + 85°C

Rated Voltage : DC60V AC50V

Contact Material : Brass, gold plated

Mating cycle : >100 times

Rated Current : 0.5A

Termination Style : Solder Type / PCB Mount

Mounting Feature : Front Mount / Back Mount / 4 Hole Flange

Mounting Type : PCB Mount / Panel Mount / Cable

Number of Positions : 2 / 3 / 4 / 5 / 6 / 8 / 12 / 17 PIN

Contact Now

M12 A Code 4pin Male Rear Panel Mount Connector , PG9 Fastening Thread ,Solder Type

Product Description

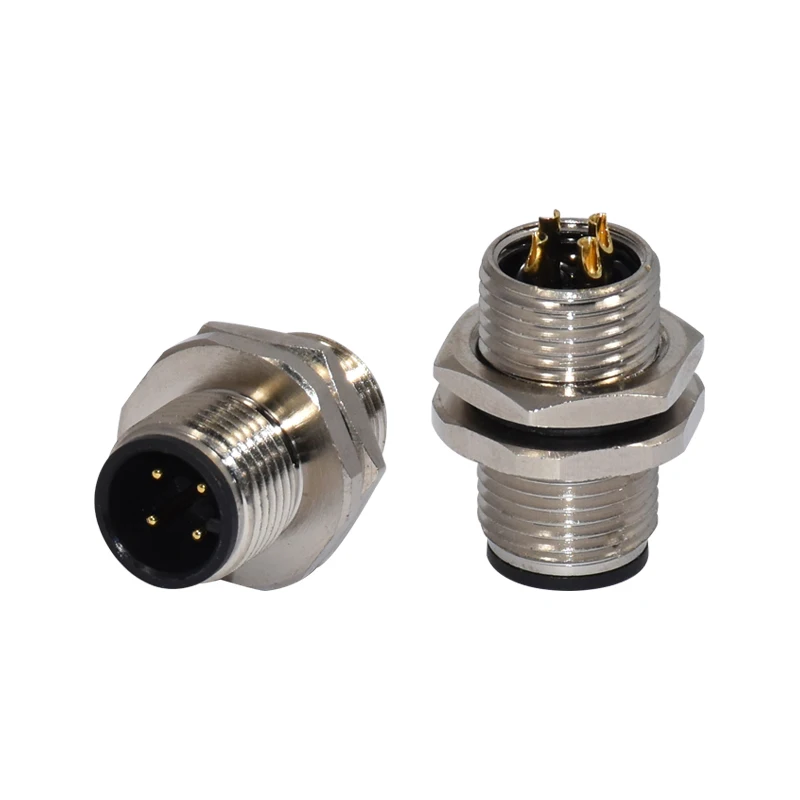

A Code 4 Pin Male 0.5A M12 Panel Mount Waterproof Connector PG9 Fastening Thread

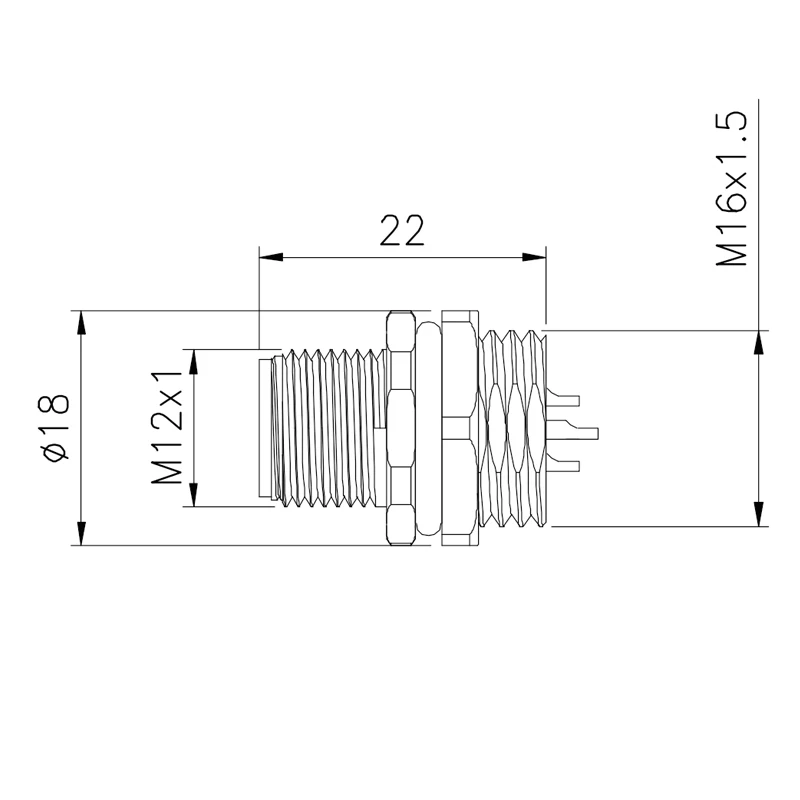

M12*1 thread locking mechanism, anti-vibration locking design;
 Easy quick connect and disconnect coupling;

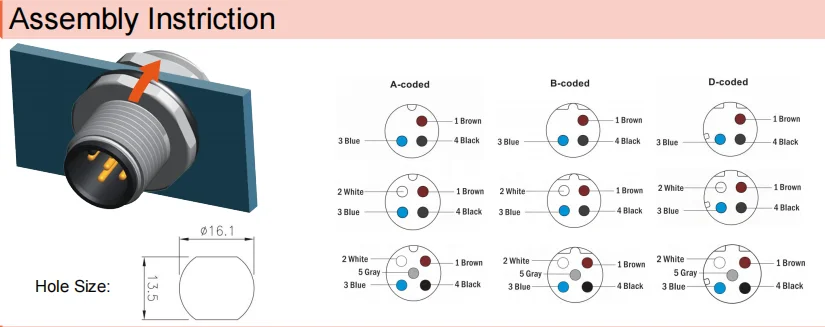

 Pin configurations: 2, 3, 4, 5, 8,12 and 17 positions;
 A, B, C, D, K, L, X, S, T coding available;
 Meets IP67/IP68 waterproof requirements;
 Temperature Range: -25°C ~ + 85°C ;
 Alternative mount arrangements for solder cup or PCB;
 Panel Mount and distribution version available;
 Available as a loose piece or as a pre-made M12 cables;

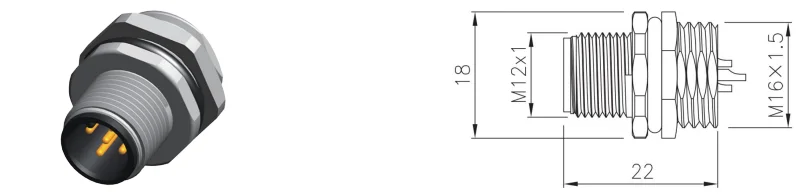

M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of
 mount: Front Mount, Back Mount, 4 Hole Flange.

Specification

item	value
Place of Origin	Shen zhen,China
Brand Name	RIGOAL
Model Number	m12 panel mount solder
Type	ADAPTER
Application	Electronic
Gender	Male
Pins	5P, 12p, 7P, 24P, 3P, 8P, 2P, 6P
Coding	A / B / C / D / K / L / X / S / T Code
Temperature Range:	-25°C ~ + 85°C
Rated Voltage:	DC60V AC50V
Contact Material	Brass, gold plated
Mating cycle	>100 times
Rated Current	0.5A
Termination Style	Solder Type / PCB Mount
Mounting Feature	Front Mount / Back Mount / 4 Hole Flange
Mounting Type	PCB Mount / Panel Mount / Cable
Number of Positions	2 / 3 / 4 / 5 / 6 / 8 / 12 / 17 PIN

Packing & Delivery

M12 molded waterproof cable have two size packaging 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Product Tags:

0.5A M12 Panel Mount Connector

A Code M12 Panel Mount Connector

PG9 Thread M12 Male Connector
