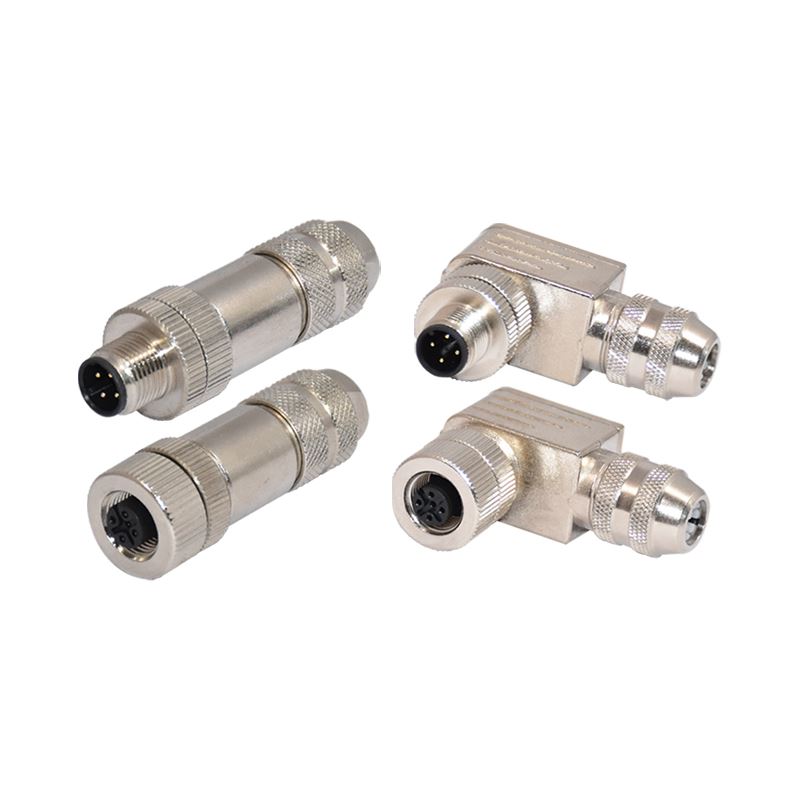

M12 straight metal waterproof connector
We have produce DIN 43650 rectangular connectors type A,M8, M12, M16 circular connectors with or without cables, to be used on solenoid valves, pressure switches, sensor switches, proximity sensors in the hydraulic and automation industry. Our company produces and can offer the following complete range of products: M8, M12, M16,circular connectors, both with cabled and without cable- and M8, M12 connectors -Junction boxes for M8 and M12 circular connectors . IP67, IP68, CE, ROHS certificated. We have automatic production equipment and modern management to provide customers with high quality products. We can OEM and customize connector and harness products for customers
M12 straight metal waterproof connector Products are used in valves, sensor , switch and so on. Products have CE, ROHS and other certification. we have a monthly production capacity of 1 million pcs and we accept customer samples or drawing custom.
Description of the M12 Straight Metal Waterconnector
waterproof M12 connector,fix screw with self-locking threaded joint,waterproof IP67 M12 cable connector.
Protected from dust and water during immersion,resistance to many oils and chemical.
Can be easily connected to proximity switches,photoelectric barries,flow moitoring devices and field bus components sensor devices and actuator devices.
Satisfy all the requirements of sensor devices and actuator devices in automation technology.
Technical data of cable waterproof connector:
Standard :IEC 61076-2-101

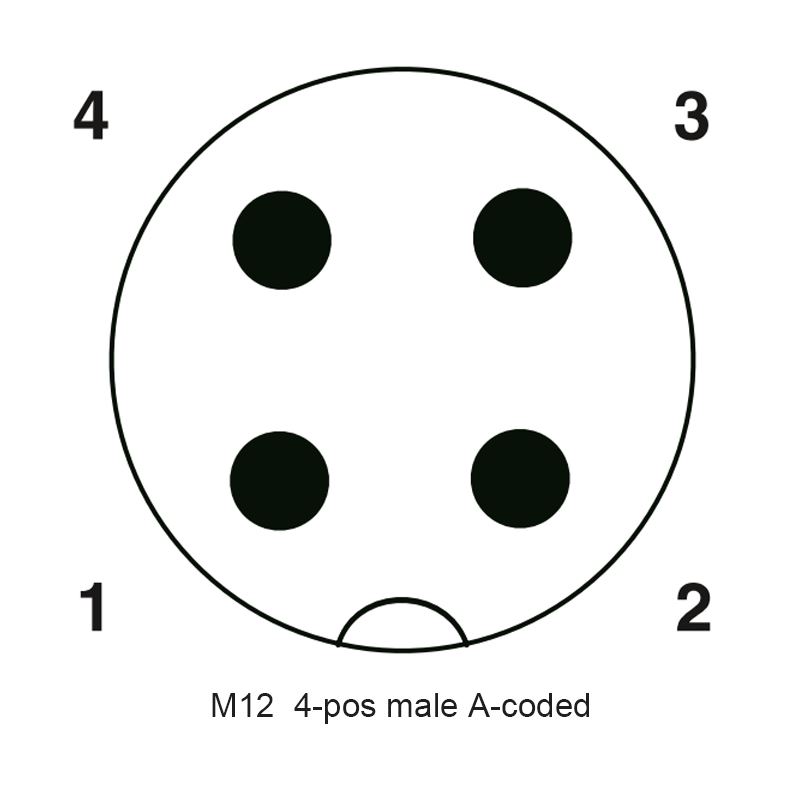

Coding : A,B,D,X
Ambient temperature:-20°C~+80°C
Insulation resistance ≥ 100M Ω
Contact resistance:≤5MΩ
Degree of peotection : IP67 in locked condition
Certified:CE & UL
Cable waterproof connector specification:
Insert : PA+GF
Contac: brass with gold plating
Screw/nut: Brass with nickel plated
Overmold:TPU
Cable specification:
Cable Jacket:PVC or PUR
Wire insulation:PVC
Cable length:Option
Standard of cable waterproof connector:
The cable connector we produced according to standard IEC61076-2-101,this International Standard describes cable connectors M12 typically used for industrial
process measurement and control. These connectors consist of fixed and free connectors
either rewireable or non-rewireable, with screw-locking.
