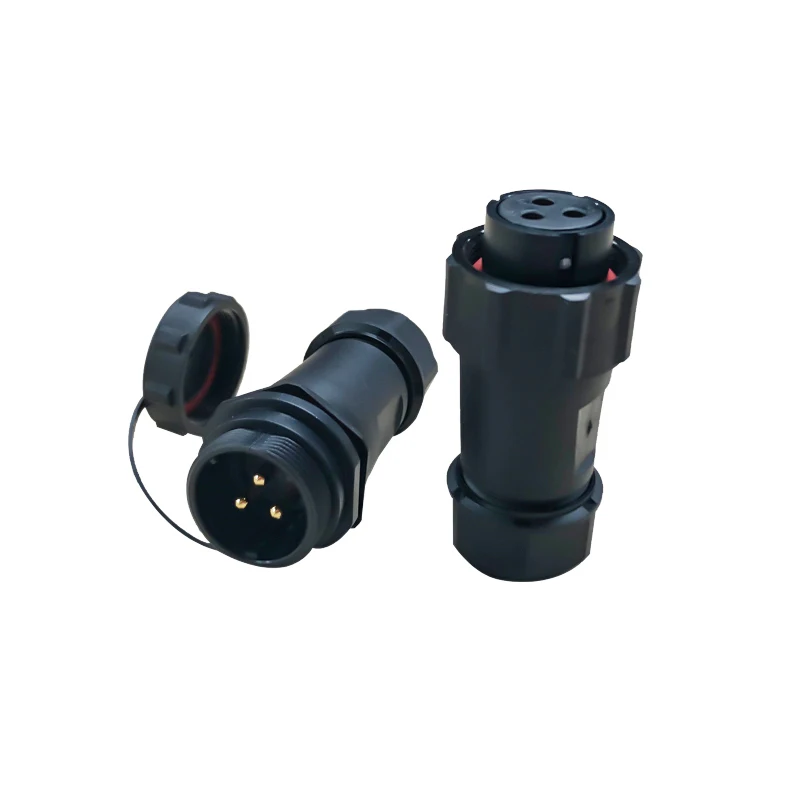

12mm Cable IP68 M21 Male Female Connector 12 Pin Nylon66 Molded Assembly

Name: 12mm Cable IP68 M21 Male Female Connector 12 Pin Nylon66 Molded Assembly
Brand: RIGOAL
Price: 1 USD

China 12mm Cable IP68 M21 Male Female Connector 12 Pin Nylon66 Molded Assembly wholesale

Brand Name : RIGOAL

Model Number : M21 waterproof connector

Certification : CE,ISO,ROHS

Place of Origin : Shen zhen,China

MOQ : 100

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 7-14

Packaging Details : To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Cable outer diameter : 7-12mm

Termination : Solder

Rated voltage(AC.V) : 500V

Test voltage(AC.V)1MIN : 1500V

Couoing : Threaded coupling

Shcoll material : Nylon66 fire resistance V0

Contact Now

IP68 Waterproof M21 Male Female 2pin 3pin 4pin 5pin 7pin 9pin 12pin Molded Assembly Connector

Product Description

12mm Cable IP68 M21 Male Female Connector 12 Pin Nylon66 Molded Assembly

Quality statement:

The SP13 SP17 and SP21 connectors are all IP68 connectors, threaded coupling. SP13 is the smallest plastic shell IP68 waterproof
 connector, this miniature connector is one of our most popular outdoor watertight connector.
 The connectors can be used for both cable to cable (in-line) or cable to panel-mount connections. Each side can be male or female
 contact.(Plug or socket versions), The IP68 sealing caps are available on both cable connector and panel connector.

Shell diameter( the panel hole cutout diameter):12mm
 Number of contacts:2-9 gold plated contacts
 Rated current and V:12A-3A,250V-125V
 Cable outer diameter accpectance: type :4-.5mm, type II: 5-8mm
 CE, Rohs approval.
 This miniature IP68 waterproof connector is ideal for indoor/outdoor and under water hush conditions. such as outdoor led
 lighting, LED panel screens, outdoor security cameras, solar energy inverter,medical device, communications, marine equipment
 ect.control systems, measuring equipments and testing equipment, for data and power

Specification

item	value
Place of Origin	Shen zhen.China
Brand Name	RIGOAL
Model Number	SP21 connector
Type	DIN
Application	Automotive
Gender	Female
Pins	5P, 3P, 8P, 6P
Mate model	SYW2110
Number of contact	5P
Cable outer diameter	7-12MM
Rated current(A)	5A
Termination	Solder
Rated voltage(AC.V)	500V
Test voltage(AC.V)1MIN	1500V
Couoing	Threaded coupling
Shcoll material	Nylon66 fire resistance V0
Insert material	PPS man temperature 260

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Product Tags:

12mm Cable Male Female Connector

IP68 M21 Male Female Connector

Nylon66 Molded Assembly Connector

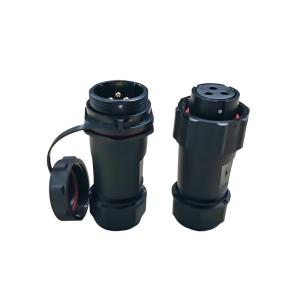

12mm Cable IP68 M21 Male Female Connector 12 Pin Nylon66 Molded Assembly Images
