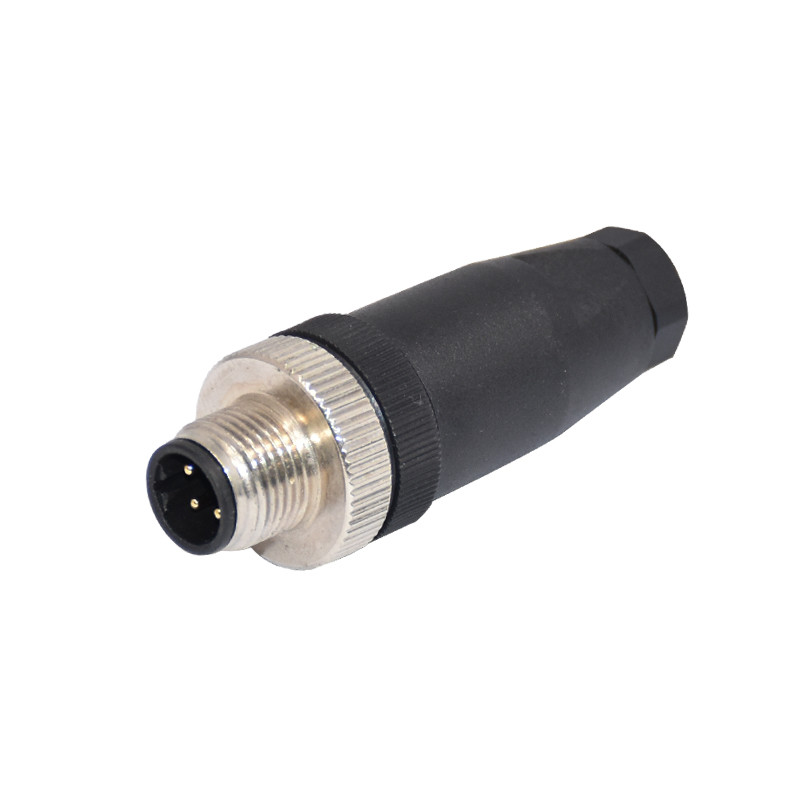

M12 Waterproof Connector M12 A Coding Circular Male Plastic Field Assembly Connector
Description
M12 connectors are established as one of the most reliable and efficient connection standards for Industrial Machinery and Factory Automation applications.
M12 Field wireable /installable connectors permit high flexibility for wiring cables in the field.
It enables quick assembly and disassembly of differing cable lengths.
The wire connection normally use soldering termination, crimping and screw termination.
The M12 extension cordsets come in both straight and right angle versions.
Quick details

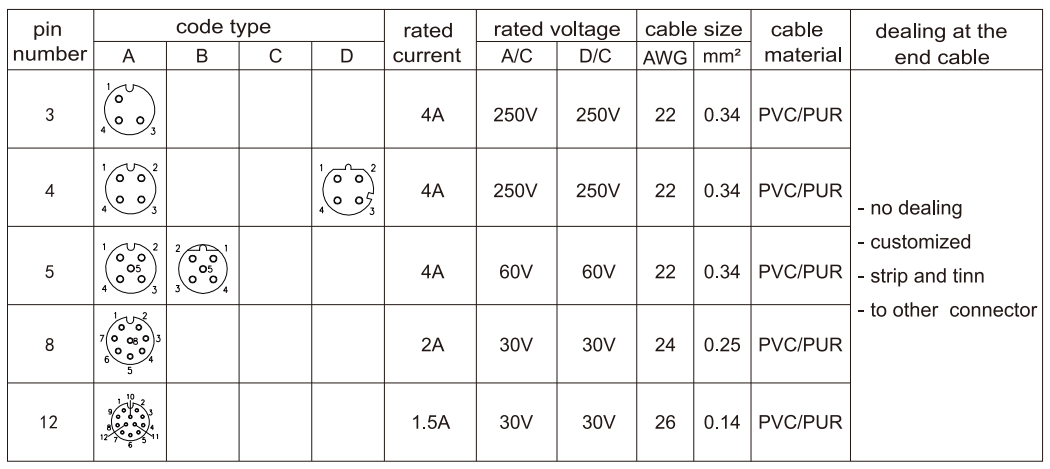

Core type: A. B. D
Contacts:3.4.5.8.12pins
Rated current: 4A
Rated AC/DC: 350V
Cable size: 0.34mm
Cable size AWG:22
Mating Cycle:500times
Temperature:-40°C~+80°C
Degree of protection: IP67/68
Material
Cable material: PUR/PVC
Shell material: copper/Zinc
Core material:PA
Insert/ Housing: TPU
Overmold material:PVC/TPU
Terminal material:Phosphor copper
Coupling nut/screw: Brass with nickel plated screw
Electrical Data
| Rated Current | 1.5A/2A/4A |
| Rated Voltage | 30V/60V/250V |
| Sealing | O-ring |
| Insolution resistance | ≧100mΩ |
| Contact resistance | ≦100mΩ |
| Cable diameter | ∅4~mm∅8mm |
| Shielding | Available |
| Gender | Female |

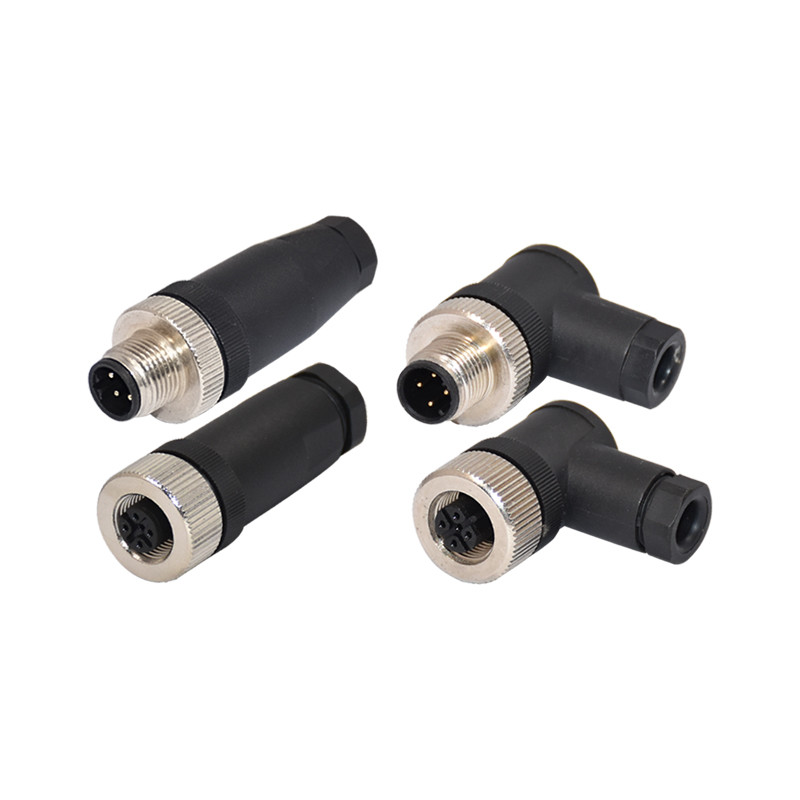

Product photos
Applications
● Standard sensor, actuator, encoder, servo motors
● Factory automation and process control
● Industrial instrumentation
● Commercial electronics PCBA
● Industrial safety light curtain, light grid, switches
● Power supply
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
● LED display panel & outdoor LED lighting
Packsging & Shipping
1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm
2.Customized according to customer's request
FAQ
1. Q: What type waterproof connector do you have?
We have a lot of types connector,most of our connector is customized.We foucs on LED Waterproof connector, Assembly waterproof connector,Over-mold waterproof connector,Sensor connector etc, also customized according to your requirements.
2. Q: How to buy your products?
* Confirm the type of connector
* Confirm the Number of Connector
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way
3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.
Rigoal-----Your Best Connection!
