4P Male M8 Waterproof Connector Plastic Field Assembly Wireable Attachable Connector

Brand Name : RIGOAL

Model Number : m8 connector

Certification : CE,ROHS

Place of Origin : Shen zhen,China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Product name : 4 Pin Round Connector

Pins : 4p, 3P

Connector type : Circular Connectors

Protection level : IP67 Waterproof Connector

Type : Circular connector

Certificate : CE,ROHS

Degree of production : ip67,ip68

Operating Temperatur : -25℃~85 ℃

Contact Now

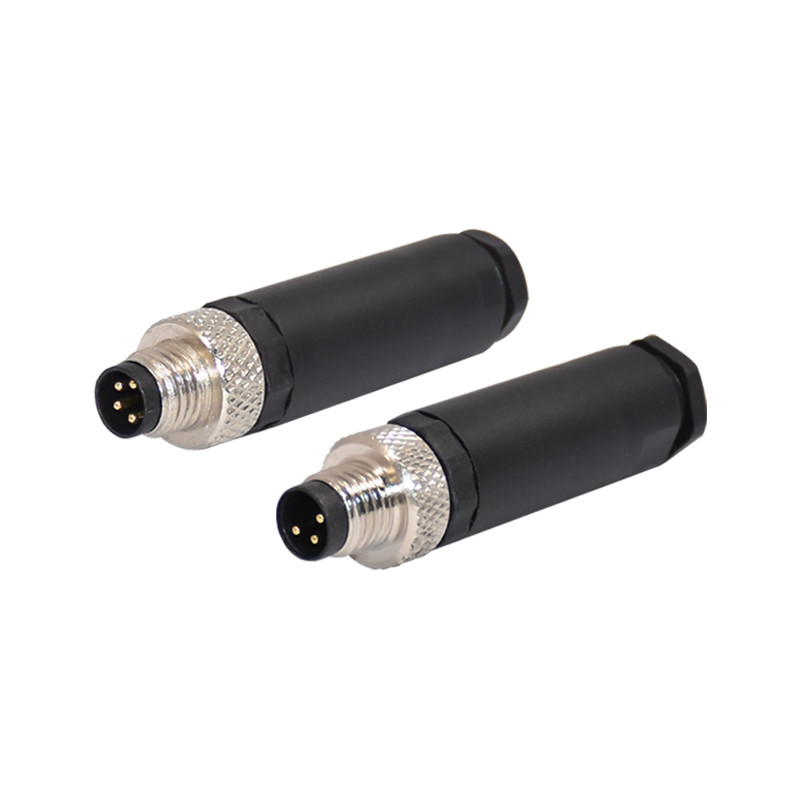

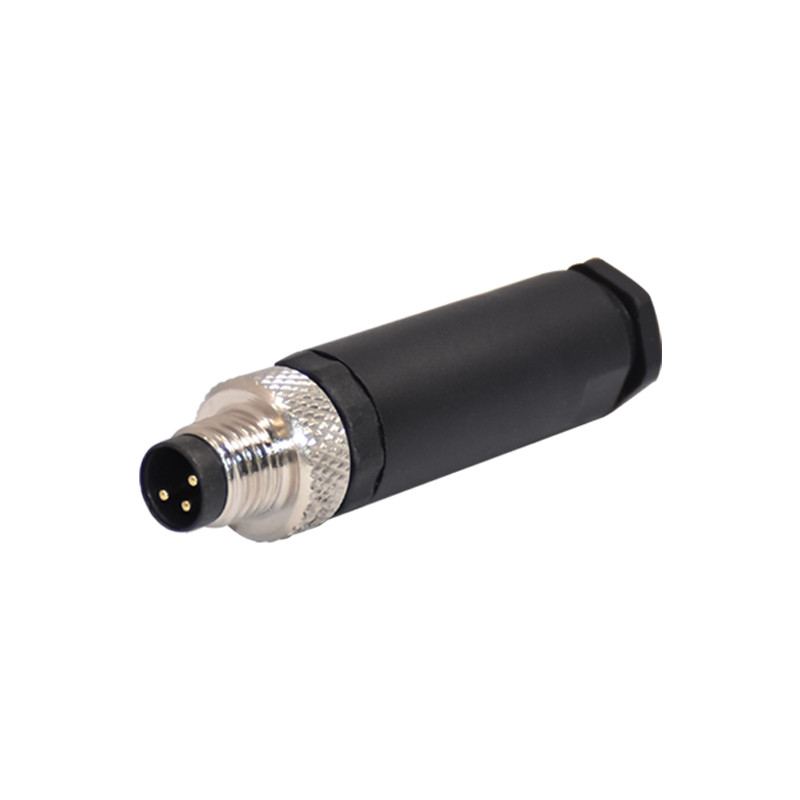

M8 4pin 4p Male Waterproof Ip67 Sensor Aviation Plastic Field Assembly Wireable Attachable Round Circular Connector

4P Male M8 Waterproof Connector Plastic Field Assembly Wireable Attachable Connector4P Male M8 Waterproof Connector Plastic Field Assembly Wireable Attachable Connector

4P Male M8 Waterproof Connector Plastic Field Assembly Wireable Attachable Connector

4P Male M8 Waterproof Connector Plastic Field Assembly Wireable Attachable Connector

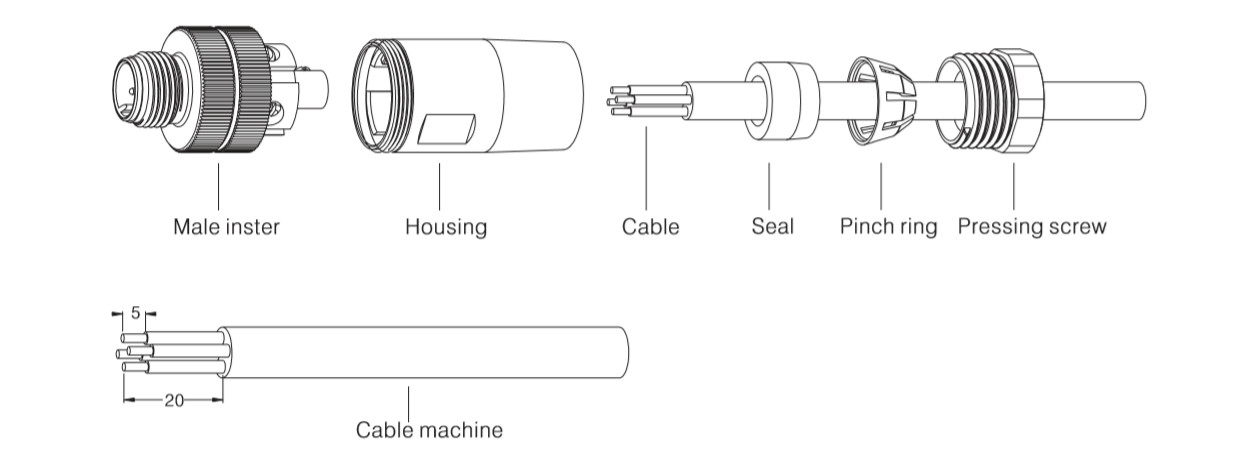

Assembly Instriction

4P Male M8 Waterproof Connector Plastic Field Assembly Wireable Attachable Connector

Technical Date
Pin No. 3 4 5 6 8
Coding: A A A A A

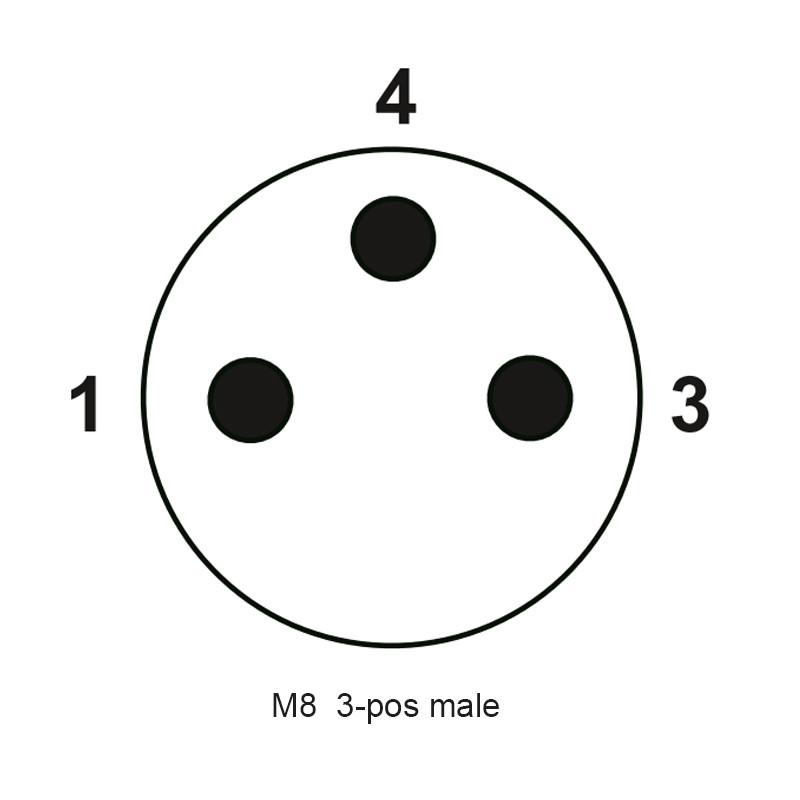

Pin for reference
Standard IEC61076-2-101
Rated current 4A 4A 4A 2A 1A
Rated voltage 250V 250V 60V 30V 30V
Operating Temperatur -25℃~85 ℃
Degree of protection IP67/IP68
Connector locking system Screw
Mechanical operation >500 mating cycles
Contact resistance ≤10mΩ
Material of connector CuZn
Contact plating Au(gold plating)
Material of connector body PA
