Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector

Name: Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP6768 waterproof connector
Brand: RIGOAL
Price: 1 USD

China Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector wholesale

Brand Name : RIGOAL

Model Number : M8 Series Sensor Connectors

Certification : CE,Rohs

Place of Origin : Shen zhen, China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Connector Insert : TPU/PA

Keywords : M8 waterproof Connector

Connector Contacts : Brass with gold plated

Product name : 3pin/4pin/5pin/6pin/8pin M8 Circular Connector

Orientation : Straight

Pins : 3pin

Type : M8 Panel Mount Connector

waterproof rating : IP67/IP68/NEMA6P

Contact Now

Aviation M8 Socket Auto Waterproof 3 4 Pins Pcb Panel Mount Connector IP67/68 Waterproof Connector

Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector

Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector ISO14001, IP68, IP69K, CE, UL,TUV, NMEA2000, RoHs, etc.

Product Description

Characteristics of M8 Series

General Characteristics
Nunmber of contact	3	4	5	6	8
Locking system	screw M8*1.0
Termination	solder, moulded on cable or screw clamp
Wire gauge in mm²	0.14/0.25/0.34
Wire gauge in AWG	26/24/22
Shell protection	IP67/IP68
Mechanical operation	>500 mating cycles
Upper temperature	+85℃
Lower temperture	-25℃
Electrical Characteristics
Rated voltage	60V				30V
Rated current(40℃)	40V			2A	1.5A
Pollution degree	III
Test voltage	500V±15V
Contact resistance	≤10mΩ
Insulation resistance	≥100MΩ
Materials
Pin contact	CuZn
Socket contact	CuSn
Contact plating	Au
Upper temperature	PA66(UL 94V-0)
Female insert	PA66(UL 94V-0)
Material of cable jacket	PVC or PUR

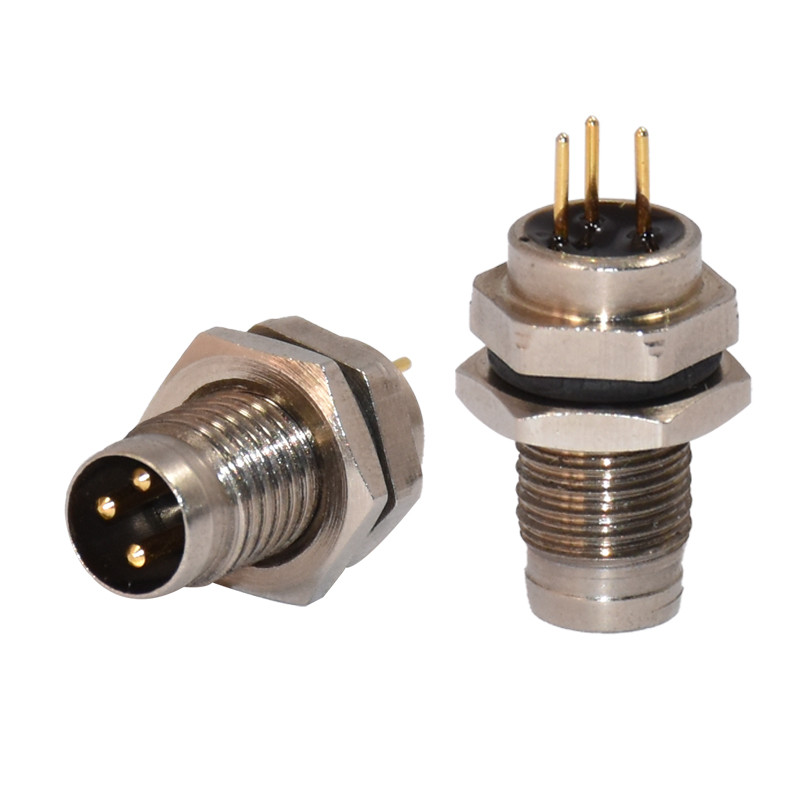

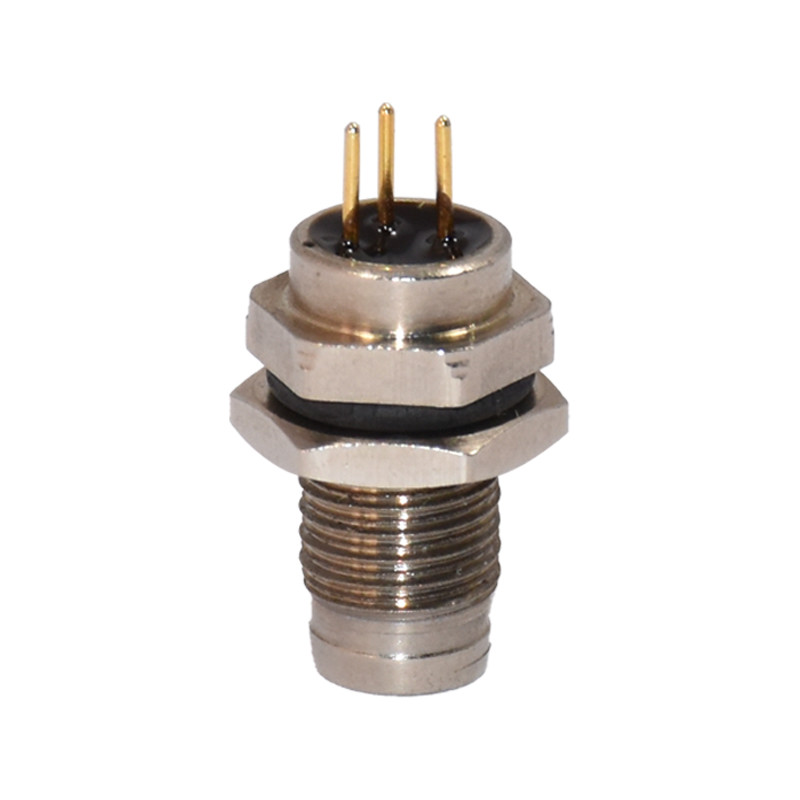

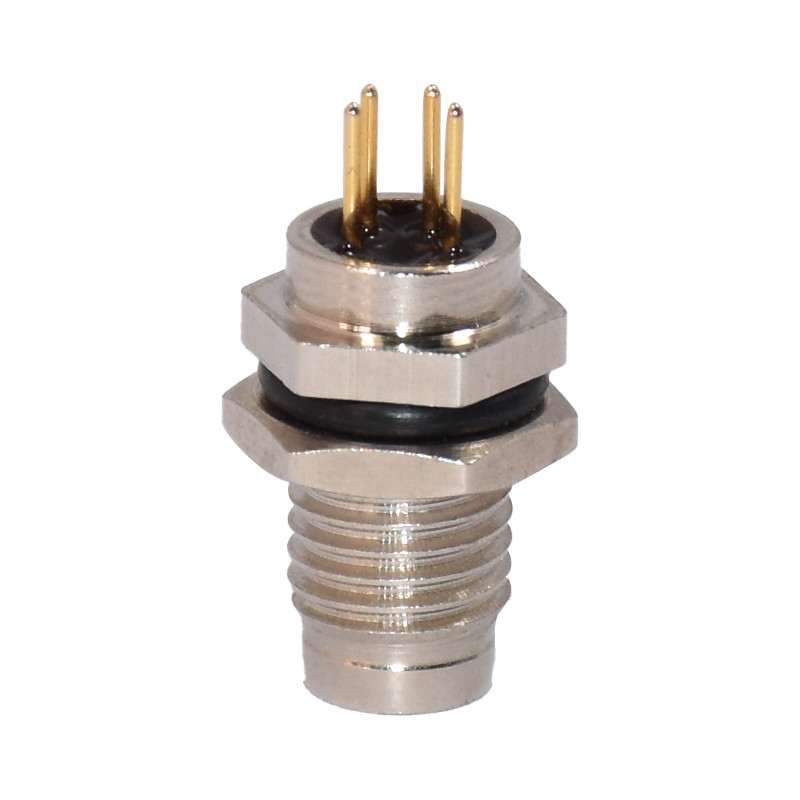

Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector Images
