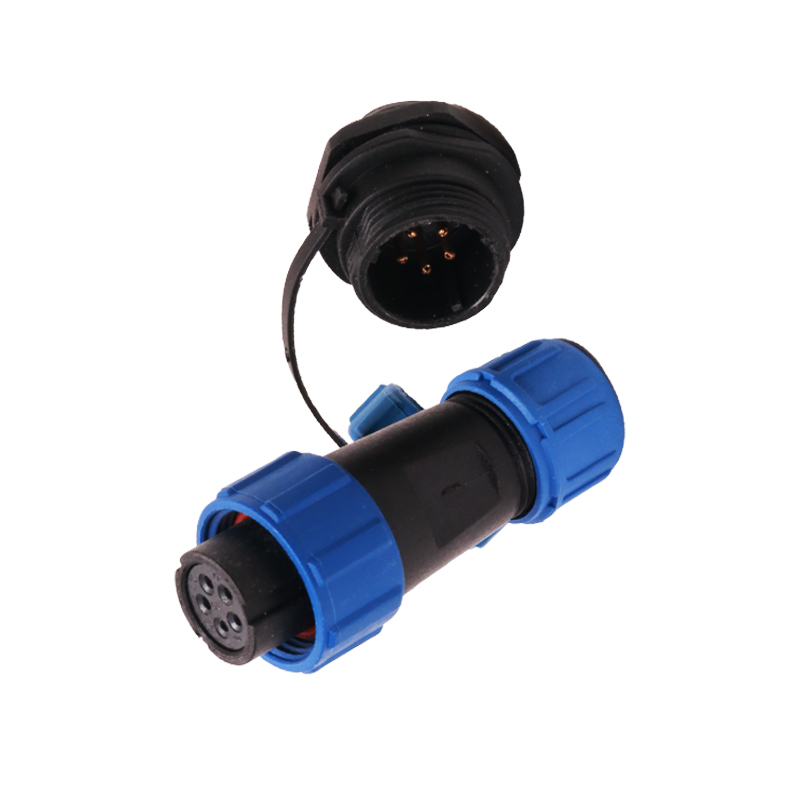

Weipu Connector SP13 Connector 2,3,4,5,6,7,9pins Threaded Plastic SP13 Connector
1. SP series of threaded IP68 connectors are perfect for your application.

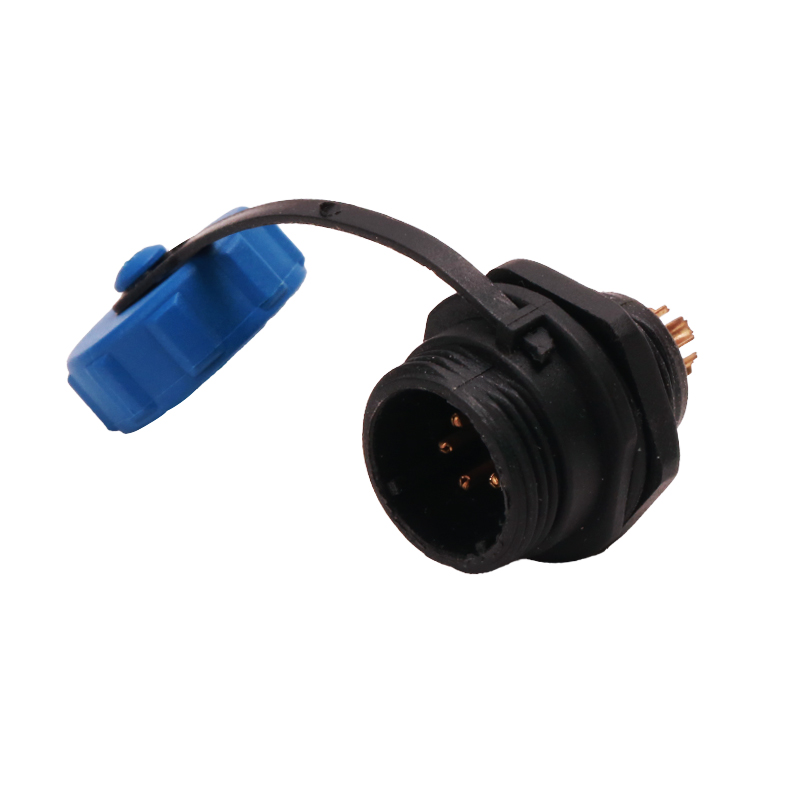

2. 2-9 Pole Cable Mount Connectors ,rear panel mounting sockets, IP68 rating,Threaded mating.
3. Weipu Connector is a manufacturer of Circular Connector with well-equipped testing facilities and strong technical force.
4. we are especially experienced for outdoor and waterproof connectors.
5. With our strong R&D capabilities, we can develop different connectors according to customer’s requirements.
6. a wide range, good quality, reasonable prices and stylish designs are avaliable
7. SP13 is the smallest plastic shell IP68 waterproof connector.
8. this miniature connector is one of our most popular outdoor watertight connector.
General Details
Coupling:Threaded coupling
Shell material: Nylon66
Fire resistance: V0
Termination: Solder/Screw
Cable outer diameter range: GM13: A (4-6.5mm) B (5-8mm)
IP rating: IP68
Mating cyclc: >500times
Temperature range: -25°C~~+85°C
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Current Rating:5A-10A
Contact Gender:Male/female
Housing Material:Plastic
Material
Shell material: Nylon66
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic
| Contact Gender | male/female |
| Mating Type | Threaded |
| Body Orientation | Straight |
| Housing Material | Plastic |
| Maximum Operating Temperature | ‘+85°C |
| Minimum Operating Temperature | ’-25°C |
| Contact Material | Brass |
| Contact plating | gold-plated |
| Panel hole cutout diameter | 13mm |
| Cable outer diameter I | 4-6.5MM |
| Cable outer diameter II | 5-8MM |

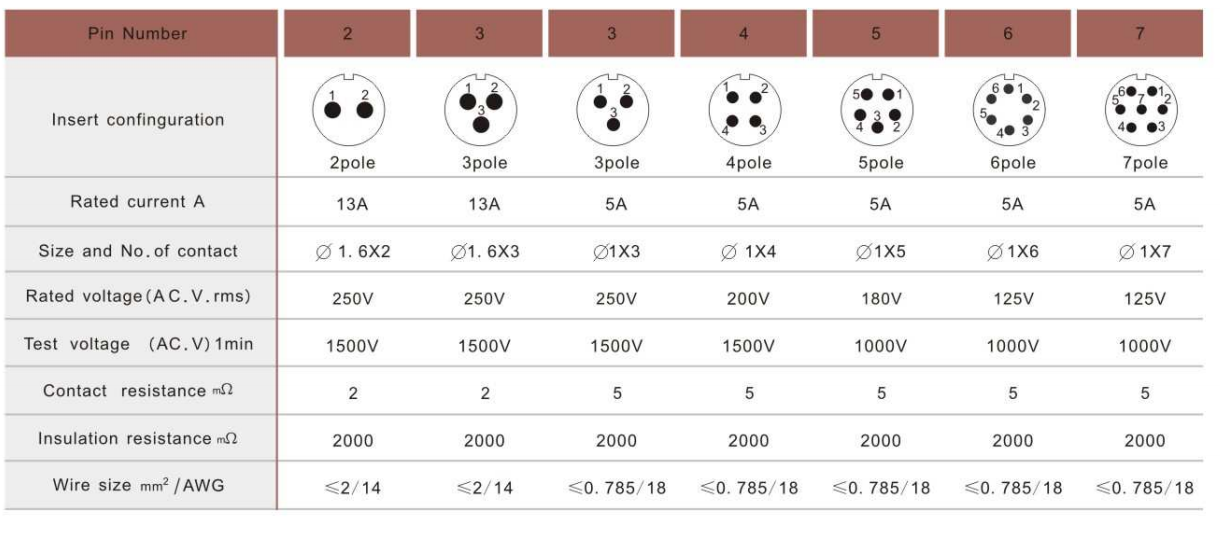

Number of Contacts
Pictures
Packaging & Shipping
Usually standard size 38*32*32cm/CTN,1000pcs/CTN
approval customized based on customers' requirements
MOQ: 100pcs each item
Delivery time: 5-7days after the payment received
Shipment: by Express,by Air, by Sea
Payment terms: 100% TT in Advance
Payment method: T/T, Western Union, Paypal
Weipu SP13 17 21 Connectors
SP series of threaded IP68 connectors has a bigger and stronger shell. With its IP68 rating
That coupled with the IP68 rating excels in harsh environments. And it's very flexible
When choosing a female connector, the robust connectors can be used for both cable to cable (inline) and cable to panel-mount connections.
All models are highly reliable and excellent quality.
